SolidTrax Track Dolly Wheel Assembly (Single)

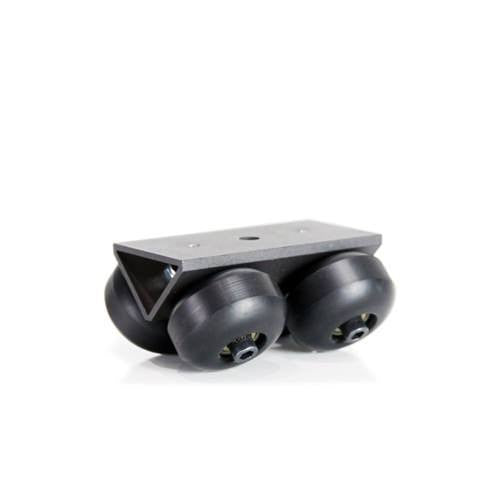

Individual SolidTrax quad wheel assembly for building custom dolly
platforms or replacing wheels on an existing SolidTrax dolly. Each

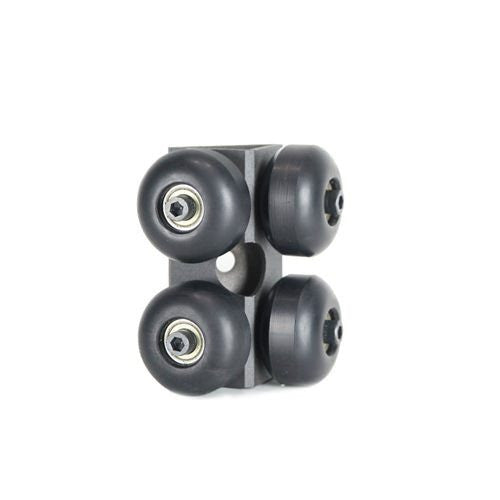

assembly contains 4 polyurethane wheels and 8 precision bearings
mounted to a heavy-duty aluminum bracket, rated for 70 lbs per
assembly.

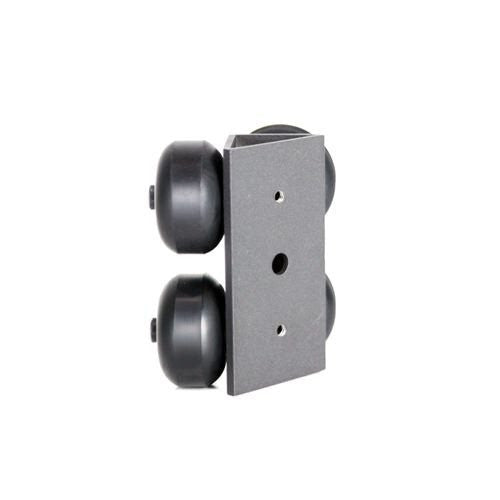

The wheel assemblies fit tracks from 3/4” to 2” and mount using one
3/8” bolt and two 1/4”-20 threads. Use them with the Modus platform
to build a custom track dolly, or mount them to your own platform for
a DIY solution. A set of four assemblies supports a person standing on
the dolly (280 lbs combined), making them suitable for manned dolly
builds as well.

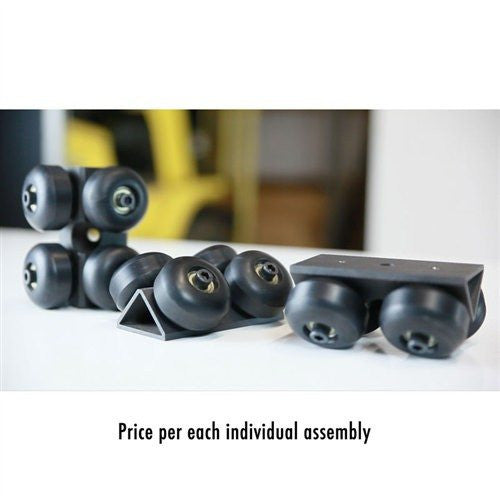

Price is per individual wheel assembly. For a set of four designed for
the Modus platform, see the SolidTrax Track Dolly Wheels, Set of 4, for
Modus System
Specs:
- Capacity: 70 lbs (32 kg) per assembly
- Track compatibility: 3/4" to 2" (1.9 to 5 cm)
- Wheel size: 53mm polyurethane
- Mounting: One 3/8" bolt, two 1/4"-20 threads
- Material: Aluminum bracket, polyurethane wheels
- Finish: Powder-coated
- Dimensions: 4.5" x 4.125" x 2.18", 1.2 lbs
Questions & Answers
Have a Question?
-
Hi, what are the product dimensions and weight? thanks
Each wheel assembly, is 4.5 inches long x 4.125 in wide x 2.18 in tall. The weight is 1.2 pounds.
-
RE: your SOLIDTRAX UNIVERSAL TRACK DOLLY DIY WHEEL ASSEMBLY These say "70lb capacity", is that 70 pounds per unit? so three would be 210 pounds then?
Yes, that's correct. Each set individually supports 70 lbs. A set of 4 can support a person on the dolly, so long as the platform you use is also rated to.
