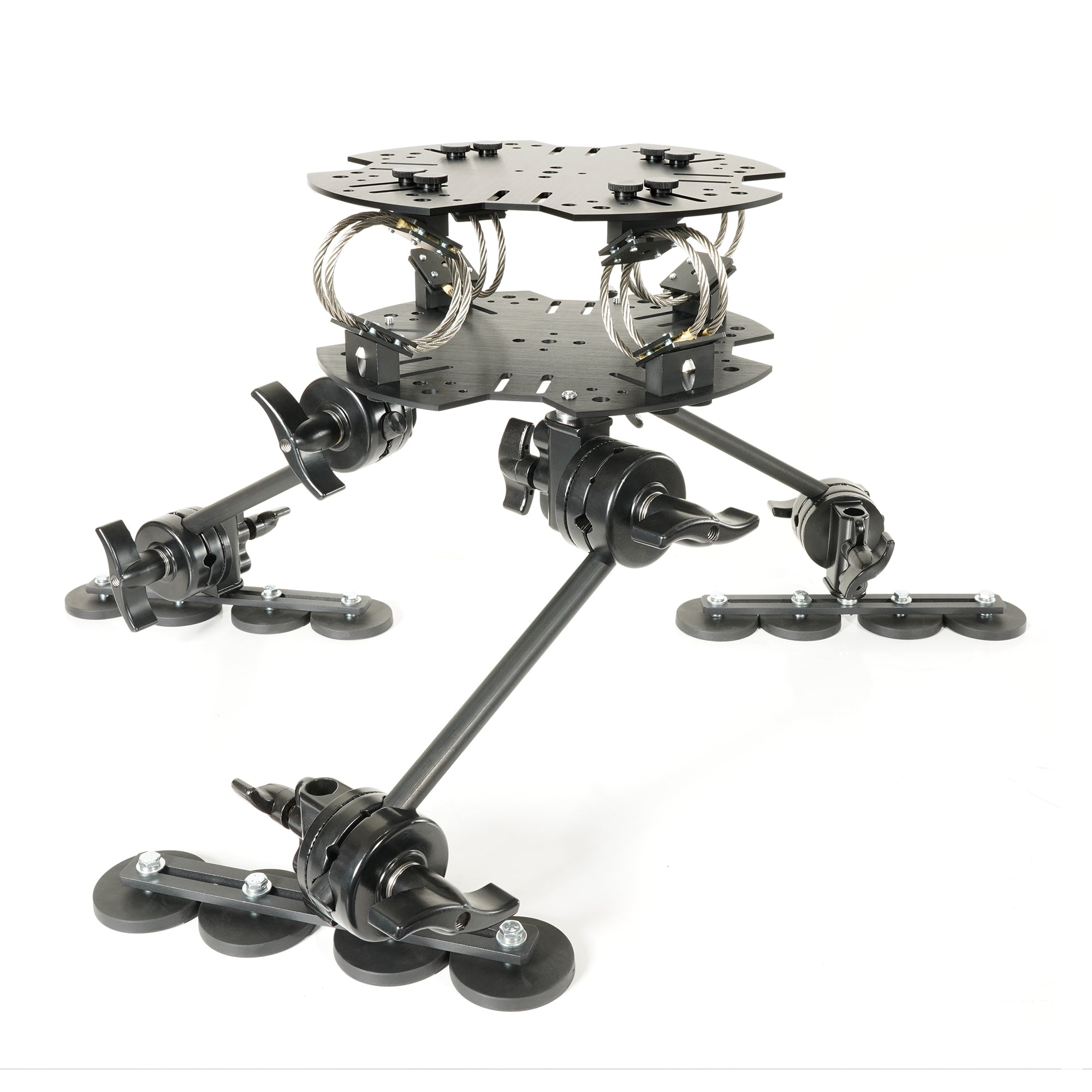

Modus Camera Mounting System IV - 2 Platforms with Wire Sets and 3 Magnet Arms

  • Sale
  • $629.00
  • Regular price $719.00

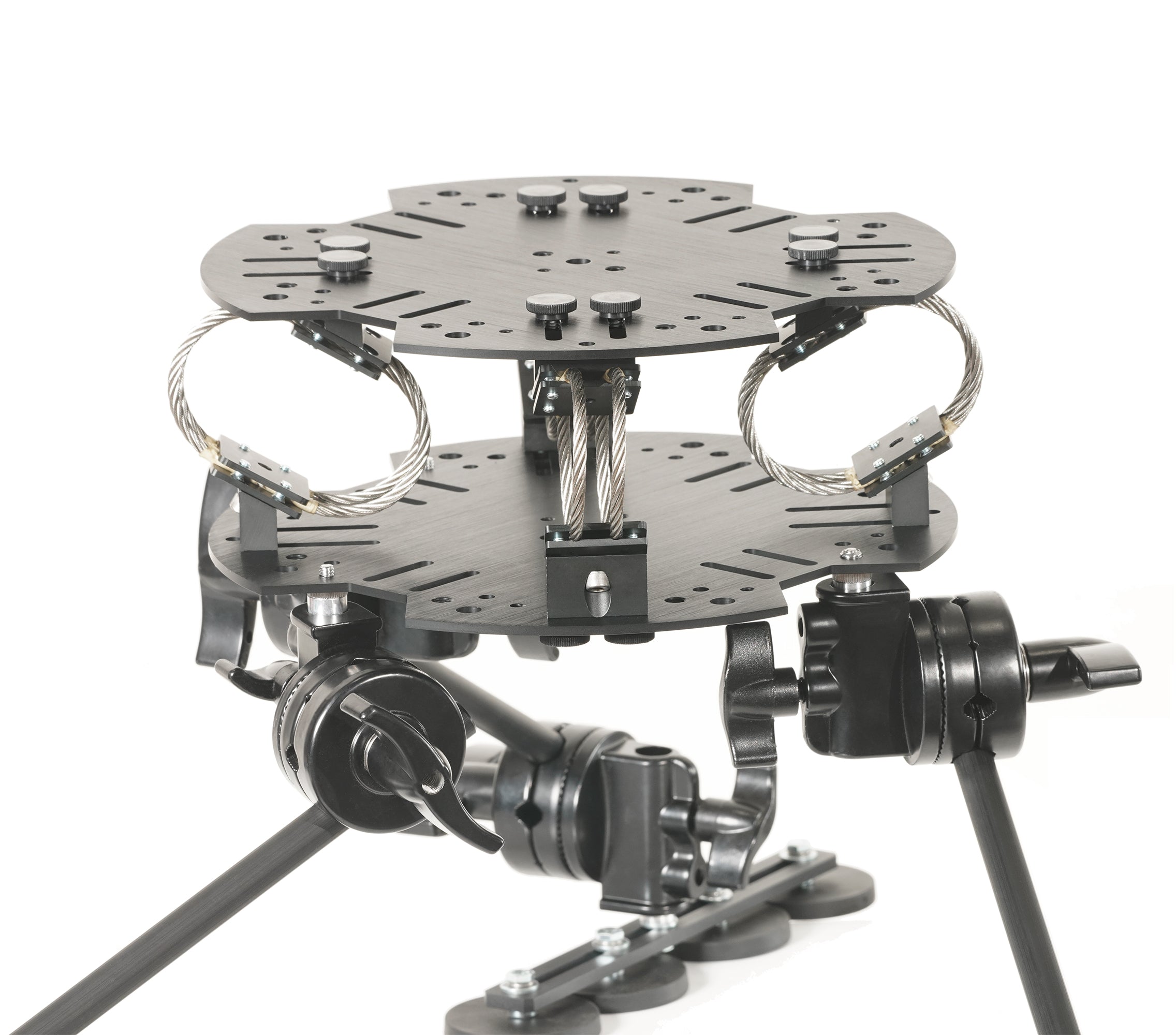

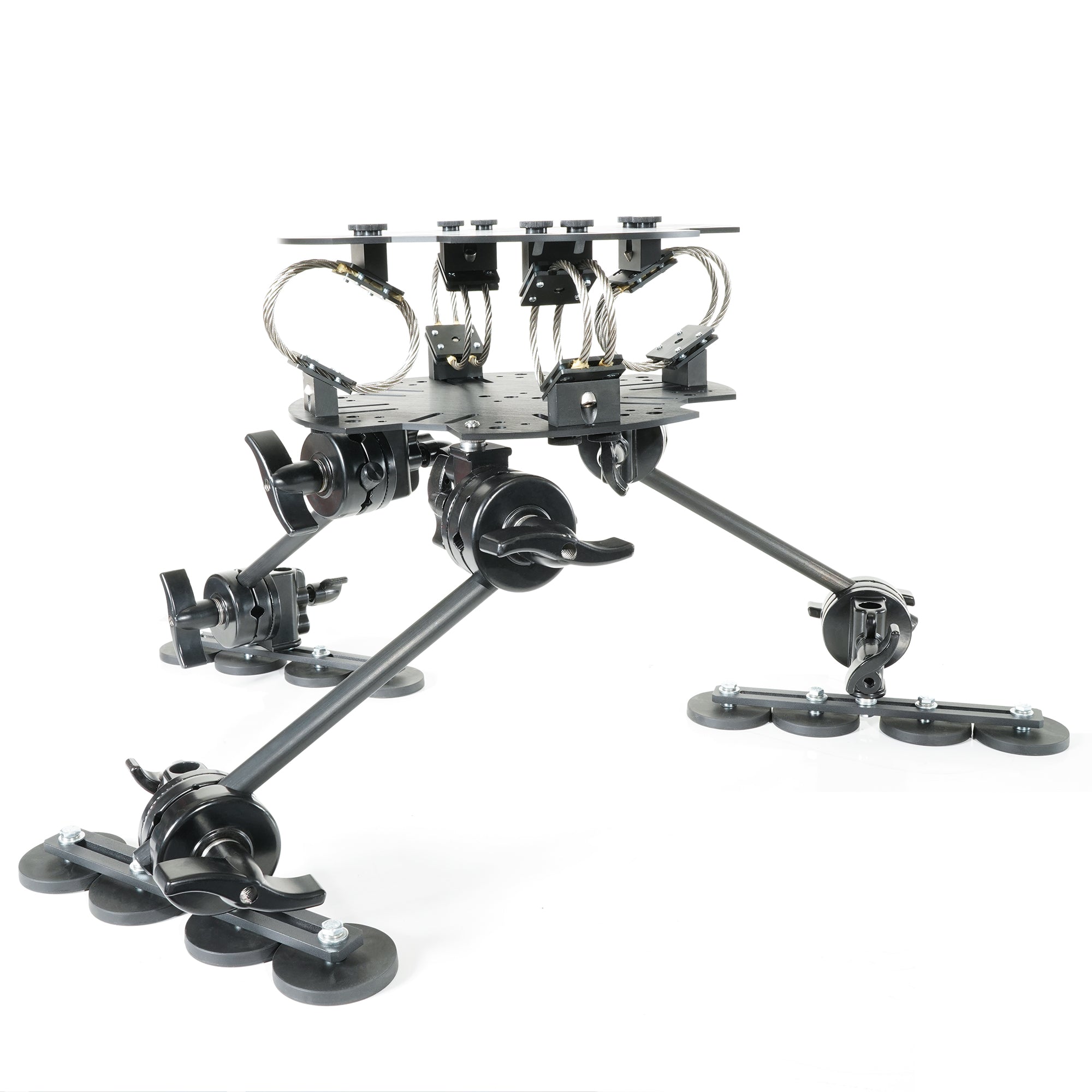

The Modus Camera Mount is the foundation to a professional camera mounting system. This kit is developed for vehicle mounting applications.

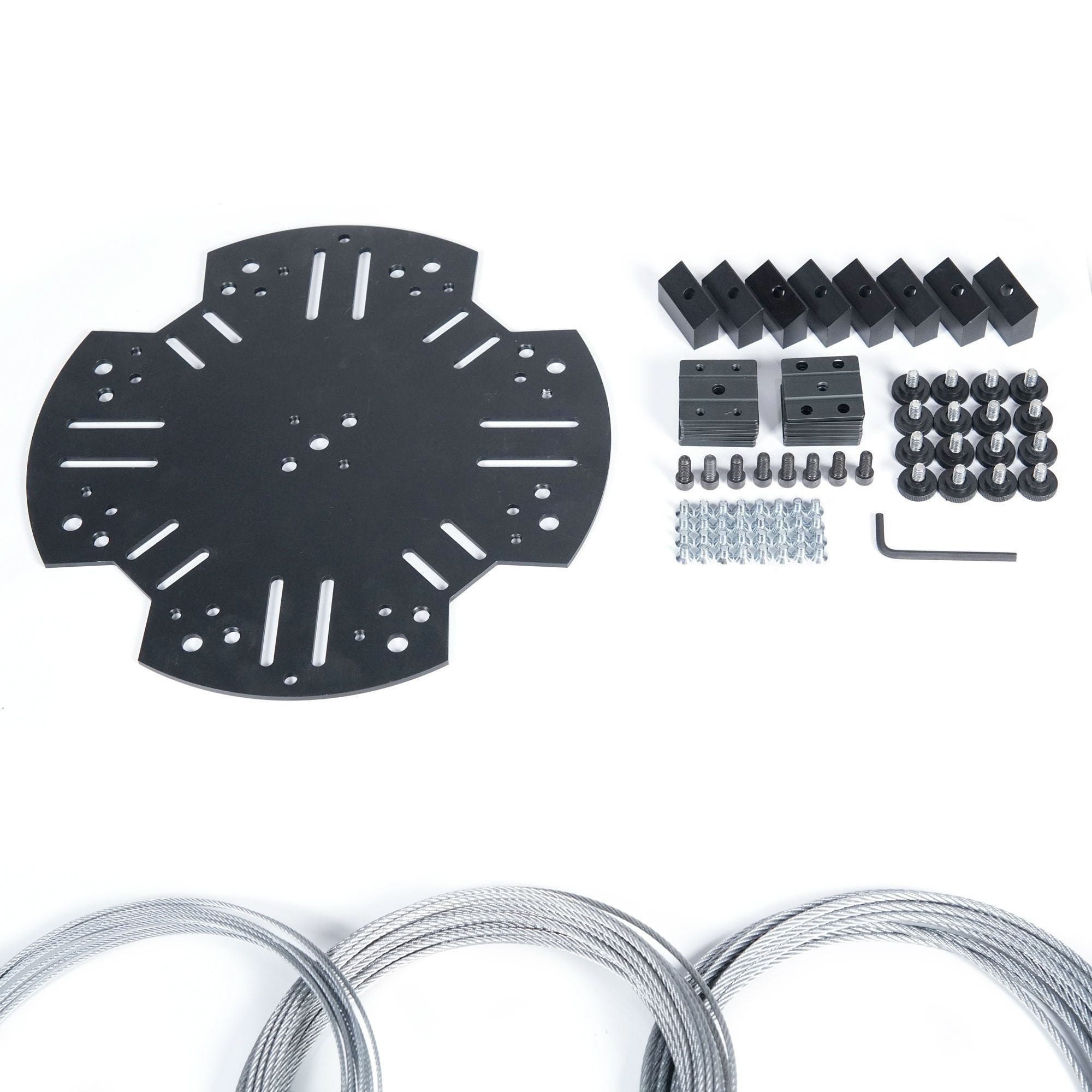

Kit includes
2 Modus plates

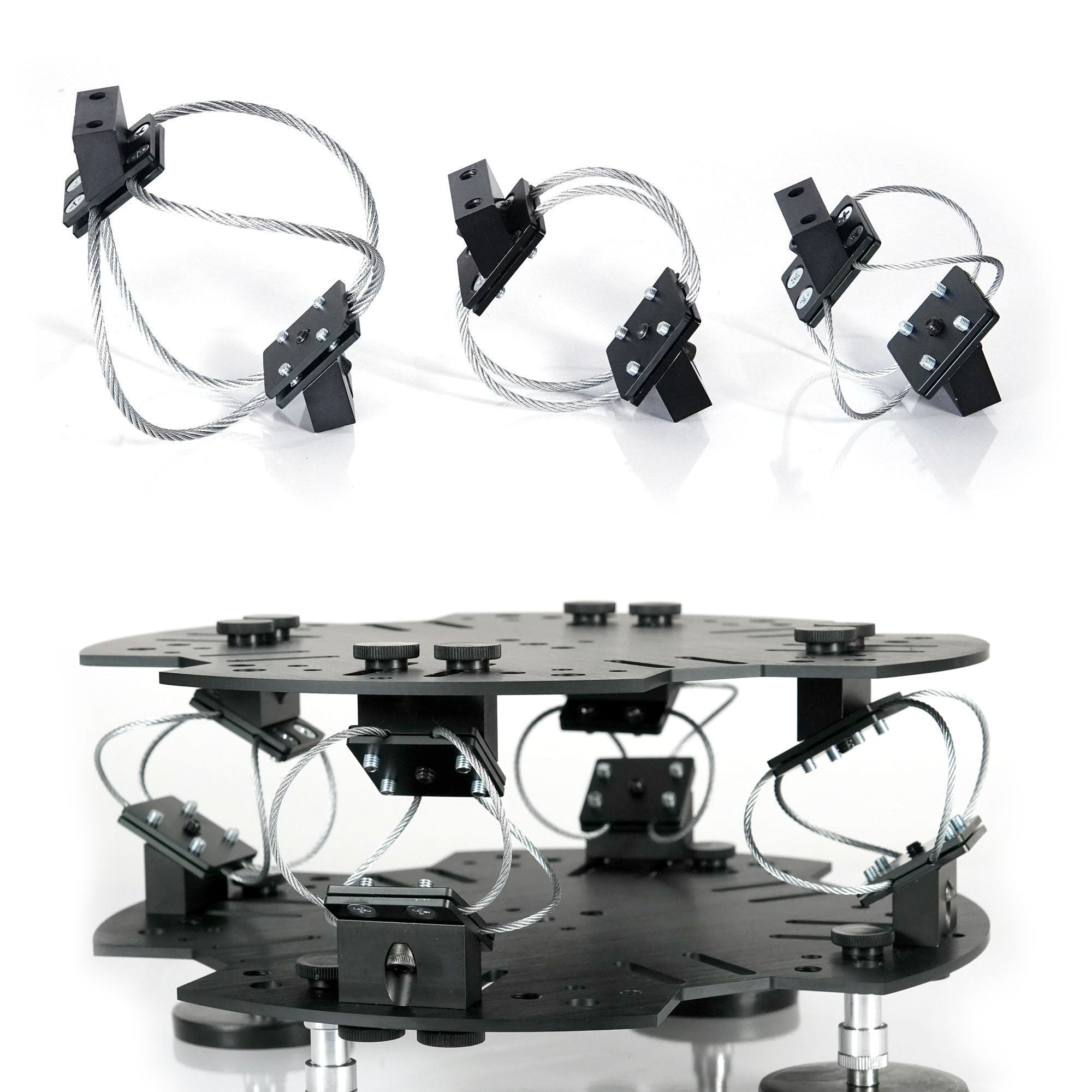

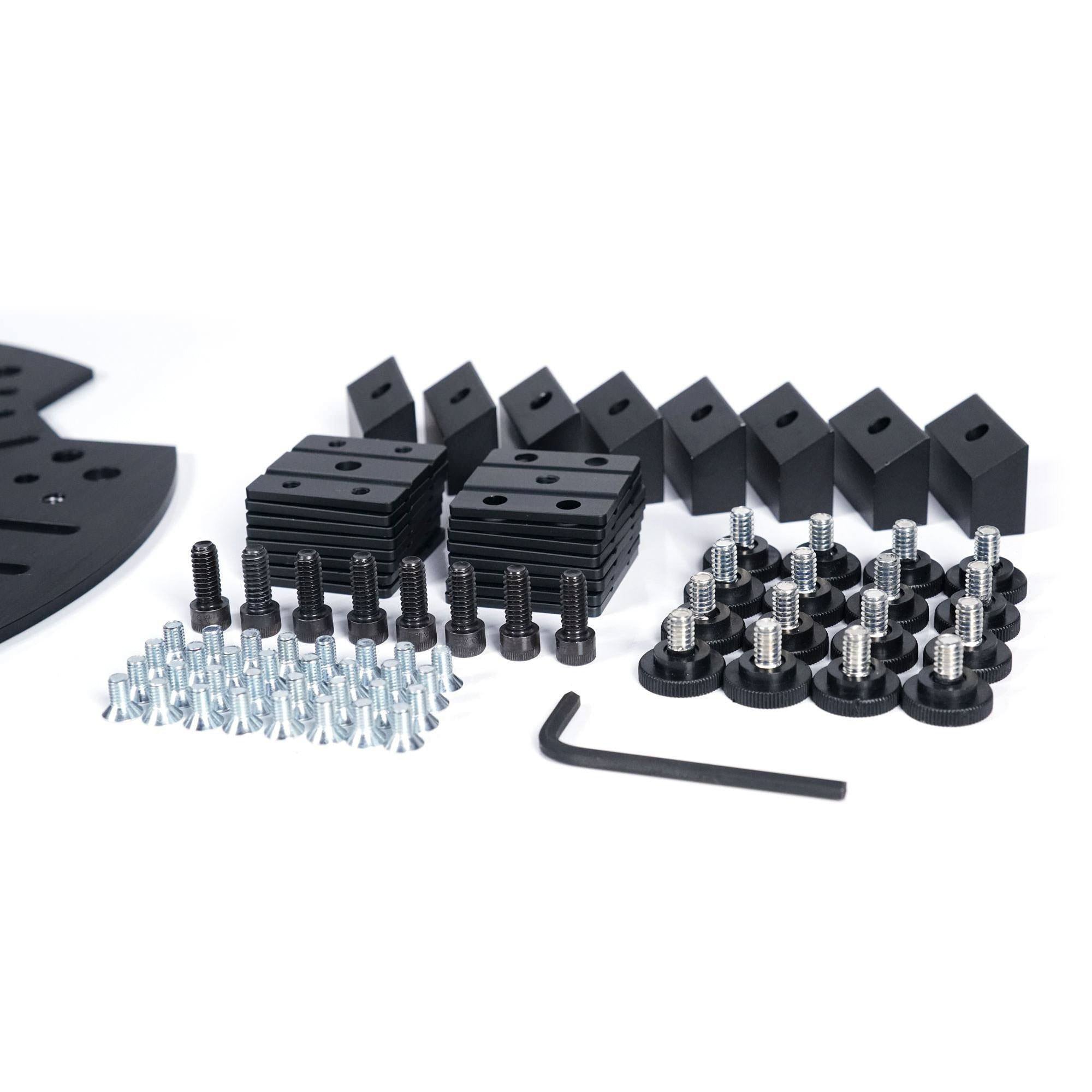

Components to make 4 wire vibration isolators
- Three sizes of wire at 10 ft each
- Wire is cut-to-size (includes cutter)

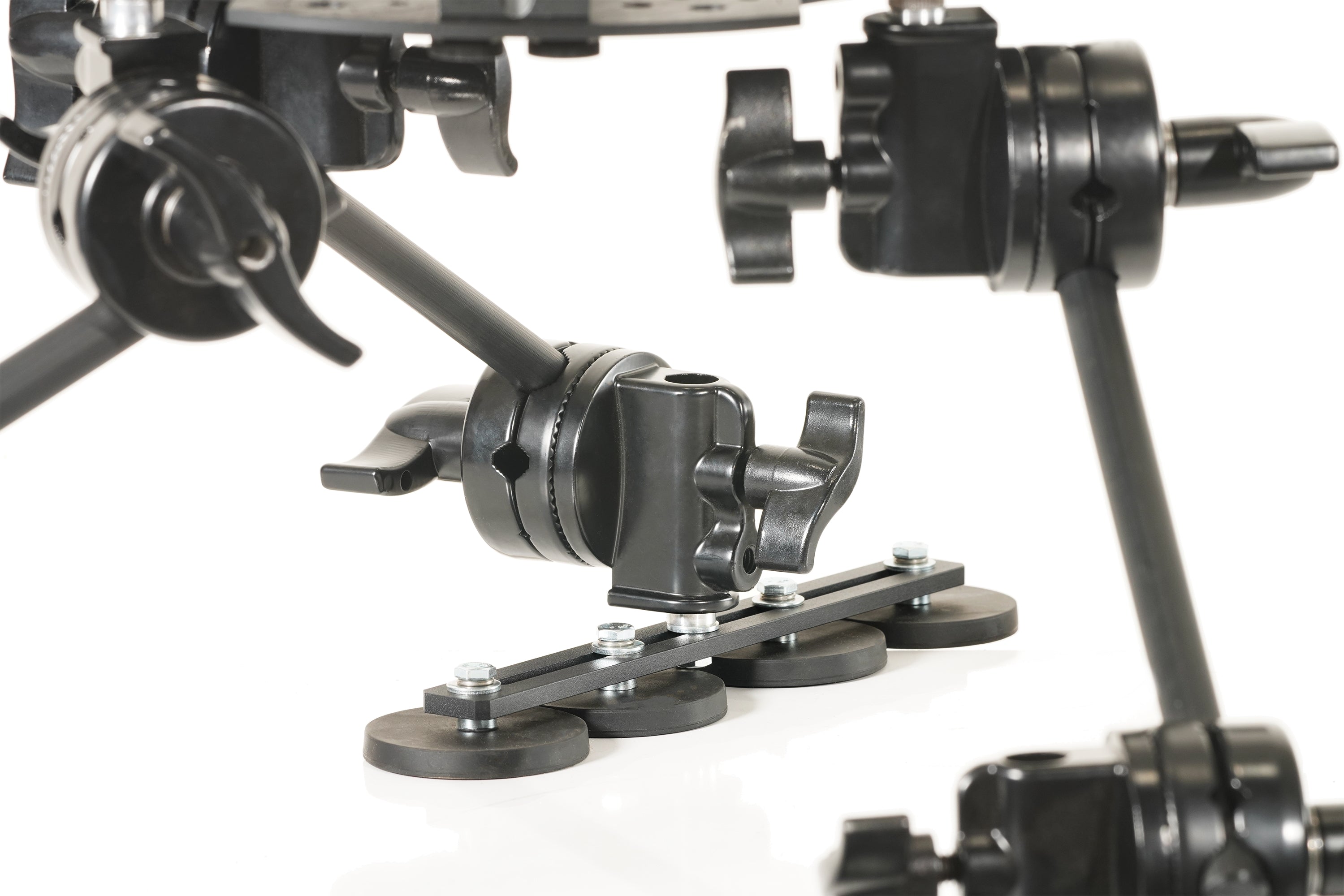

3 magnet arm mounts (6 gobo heads, 3 arms, 12 magnets)

Recommended to support cameras and accessories up to 12 pounds
Features various 1/4-20 and 3/8-16 threads for ultimate compatibility

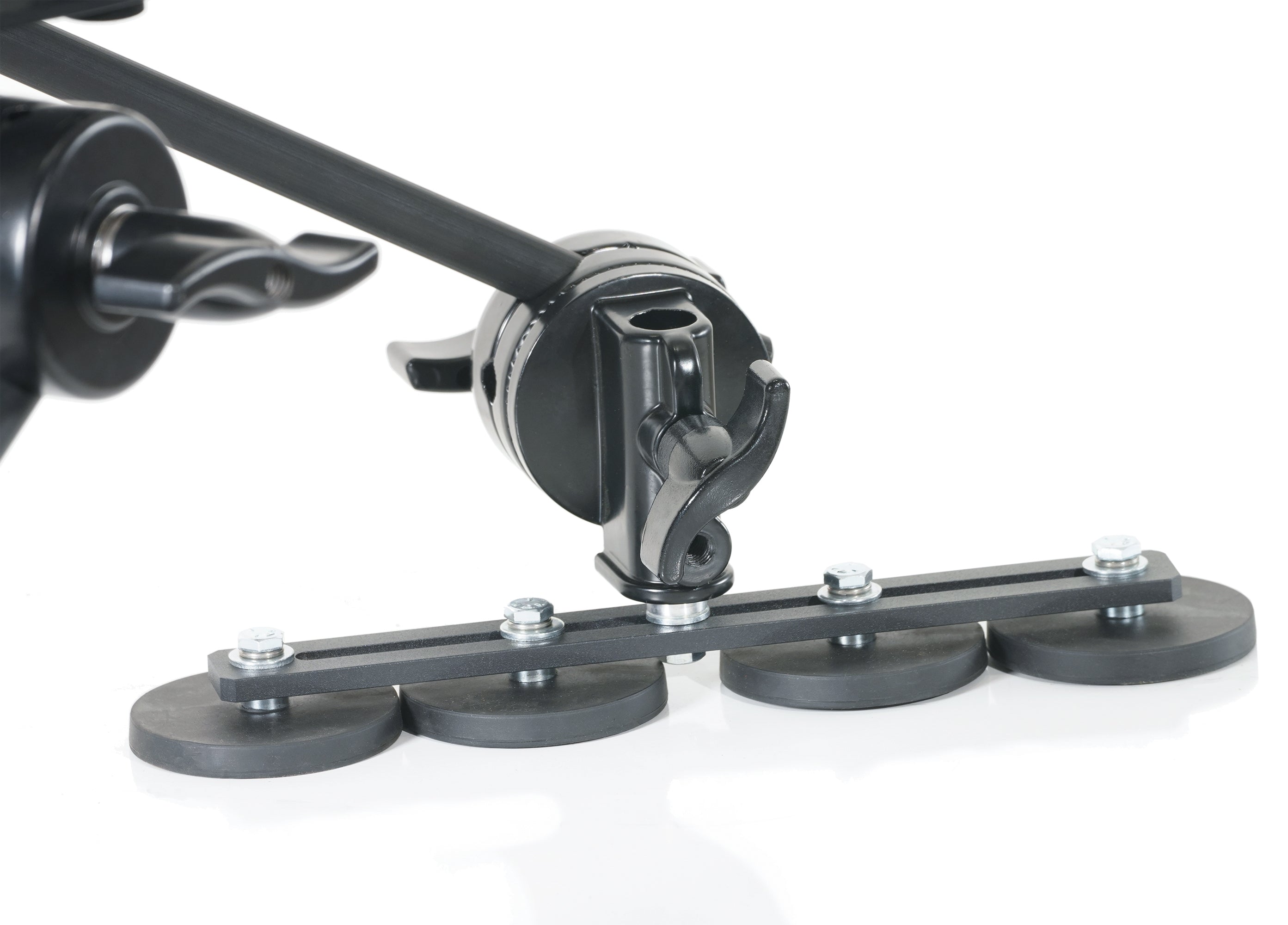

Each rubber coated magnet has 6 neodymium magnets, each 1/2 inch in diameter
Rubber coating prevents scratches on vehicles
Up to 40 pounds of vertical pulling strength per magnet*

Includes two (2) Modus platforms, three (3) magnet arms, six (6) risers and wire fastening hardware. Tripod head is not included.

*While the vertical pulling strength maxes at 40 pounds, real world conditions reduce the operating weight limit. Mounted loads will put additional torque on the magnet. Camera and accessories, when mounted, raise the center of gravity of the mount making it easier to remove. Always use a secondary method of securing the device being mounted, such tie-down strap.

Recommended tie-down kit:
Soft door jamb mounting straps:



  • All aluminum 4mm thick plates, 12 inches in diameter
  • Supports camera loads weighing up to 12 lbs (5.45 kg)
  • Black anodized aluminum to reduce fingerprints
  • Various 1/4-20 and 3/8-16 threaded mounts, 1/4 in grooves
  • Unit Weight: 6 lbs (2.7 kg)
  • Shipping Weight and Dimensions: 8 lbs, 18" x 16" x 8"
  • Lifetime Warranty and 30 Day Money Back Guarantee


4 Sets of SolidTrax Wheel Assemblies allow you to mount the Modus on your own tracks sized 3/4 in to 1-1/2 inches. Track width will be 7-1/4 inches on center.

The Table Top Dolly Wheel Option features 4 wheels and two adjustable crossbars that can be locked into place making smooth curving dolly moves.

modus-adjustable-dolly-wheels-assembled-option-fluid head

Our recommended fluid head features a hydraulic damping system and is compatible with the Manfrotto 577 plates. The Ronin adapter mount fits both M and MX models.
