Heavy Duty Tripod Dolly V2, 4” Wheels, Supports 100 lbs

The Heavy Duty Tripod Dolly V2 is built for the heaviest tripod and
camera setups, supporting loads up to 100 lbs. All-metal construction
with large 3” rubber-lined locking wheels delivers smooth, quiet
rolling on studio floors, stages, and event venues.

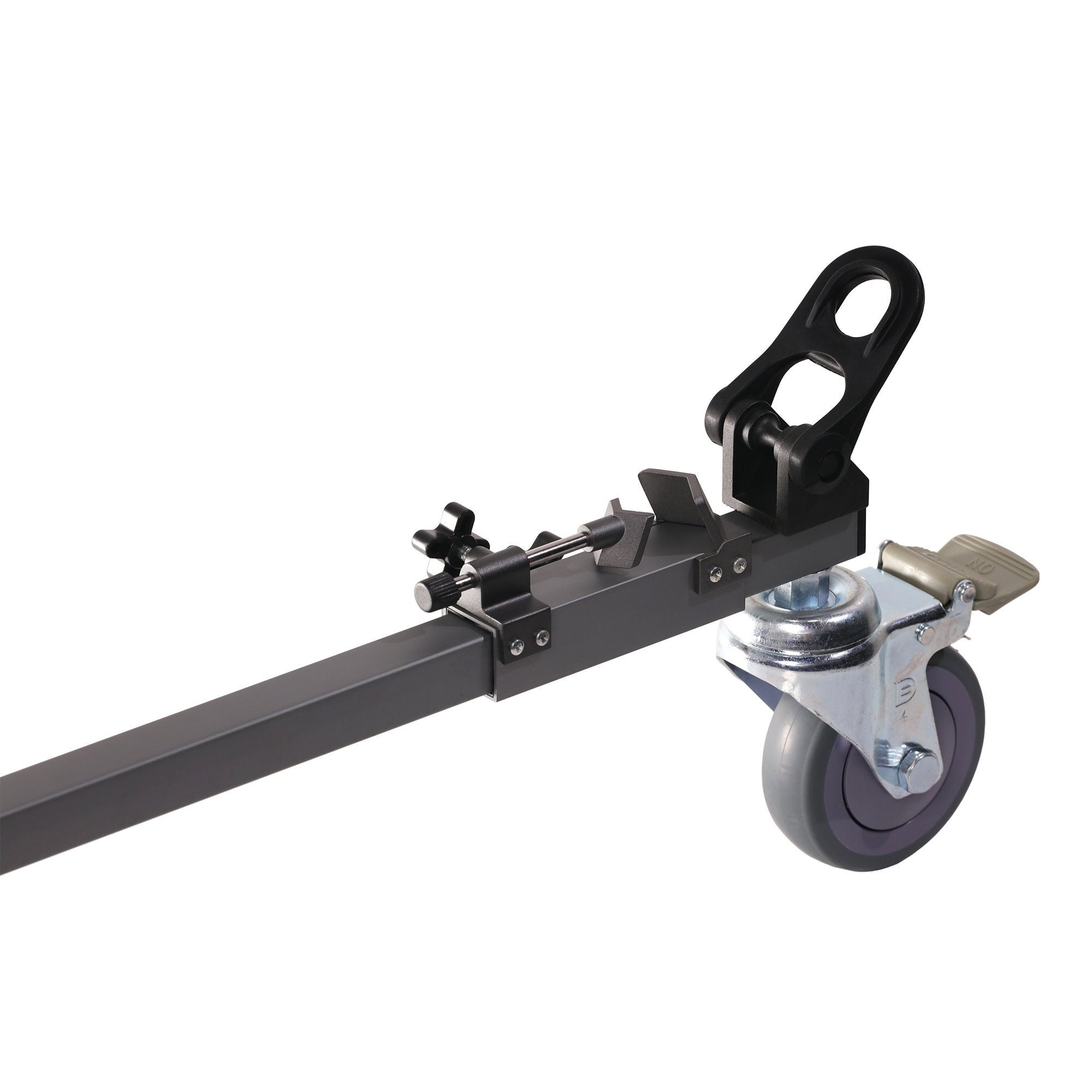

Two mounting styles handle virtually any tripod: clamping mounts
grip tripod legs with rubber feet, while secondary loop mounts accept

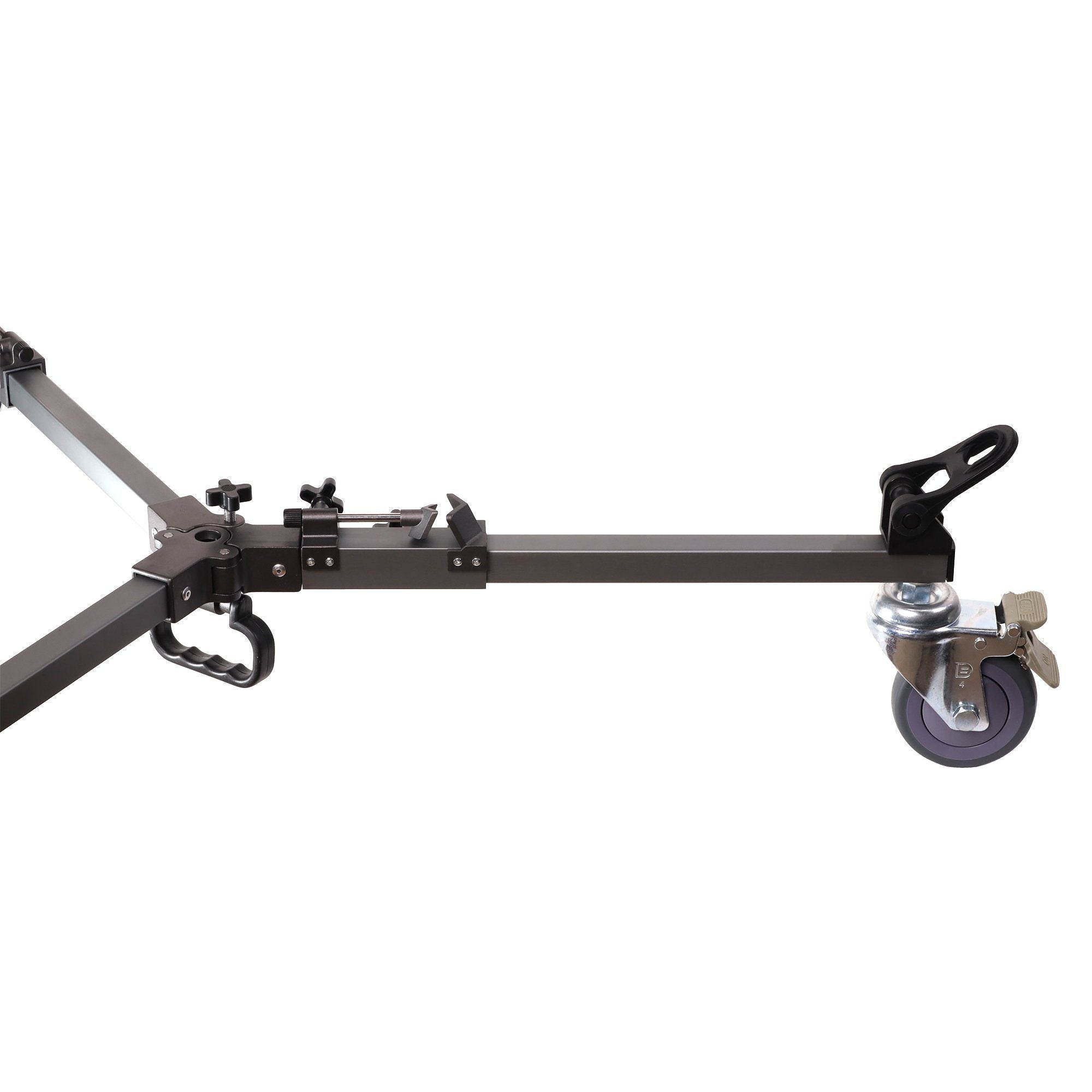

tripod legs designed for floor spreaders. The adjustable arms extend
from 6.125” to 16.5” from center, fitting tripods from compact field
models to full-size studio legs.

Each wheel locks independently with a step-on brake. When locked,
the dolly holds position on flat and slightly uneven surfaces. The dolly

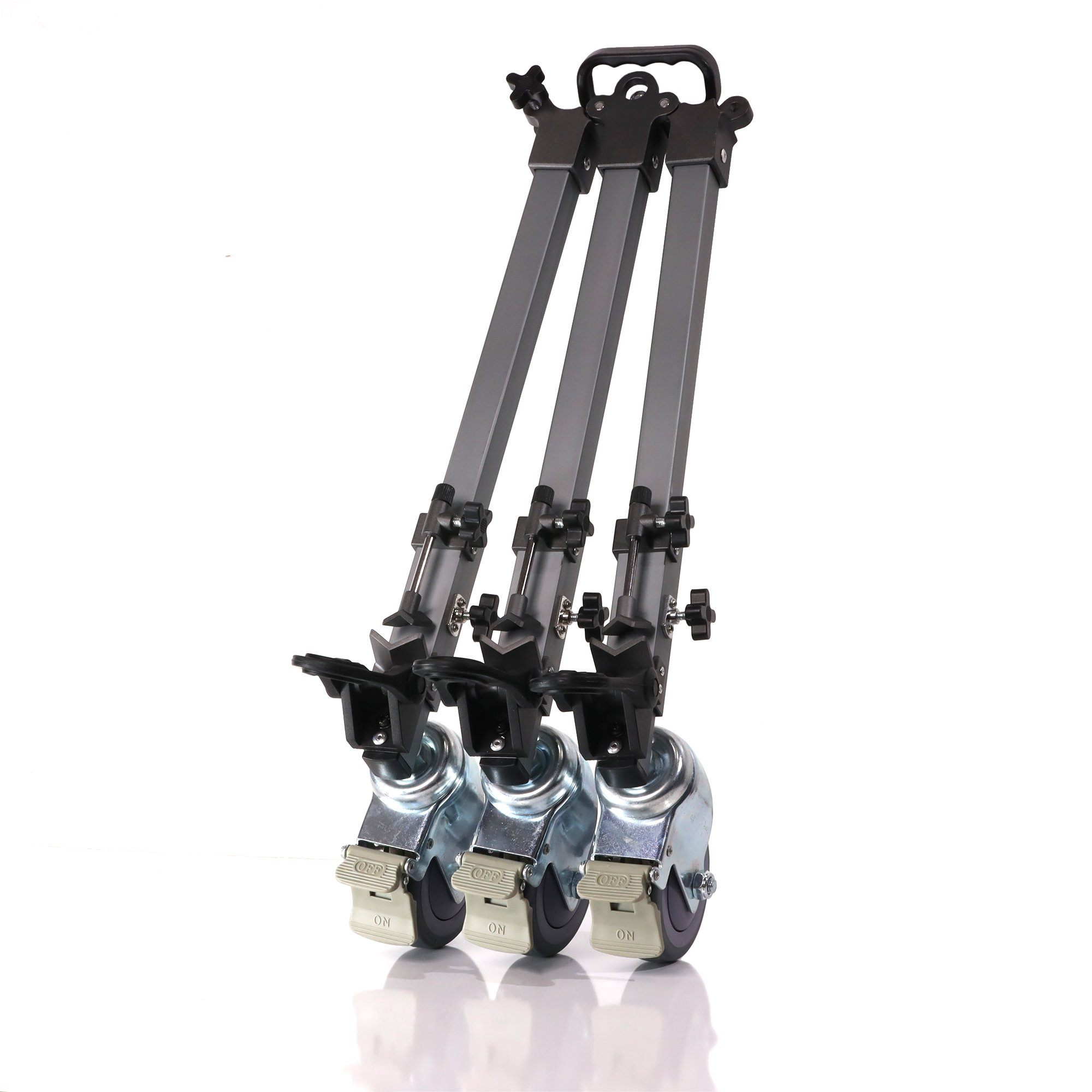

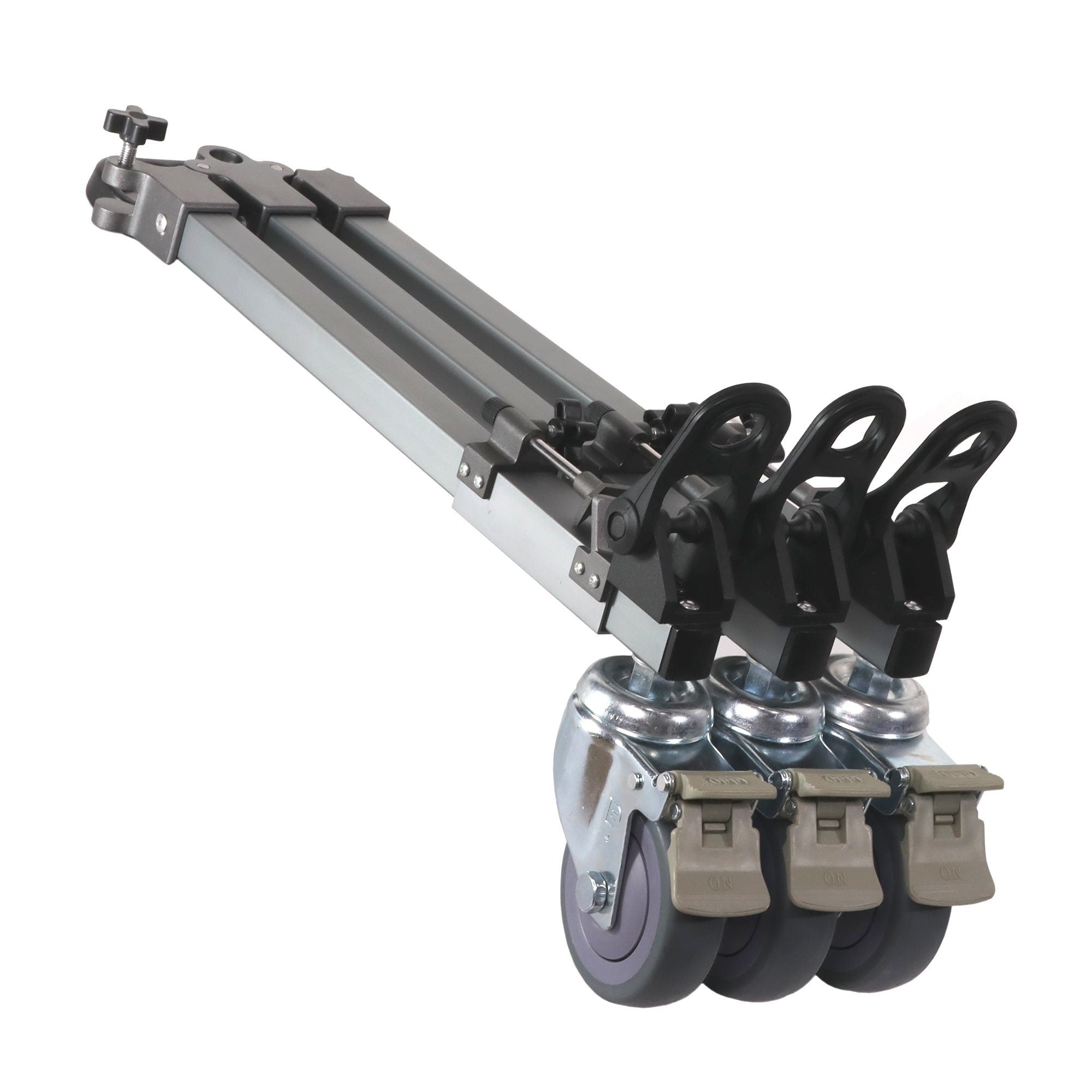

folds flat for transport and includes a carrying bag.

This is the dolly to get if you’re rolling a camera crane on a tripod,
working with a heavy broadcast camera, or running a studio setup
where repositioning quickly between takes matters.

Specs:

• Capacity: 100 lbs (45 kg) -
• Wheel size: 4” rubber-lined, locking
• Arm reach: 6.125” to 16.5” from center (12.25” to 33” diameter)
• Leg receiver: Opens to 2.5” max, 7/8” depth
• Mount types: Clamping (rubber feet) + loop (spiked feet)
• Material: All metal construction

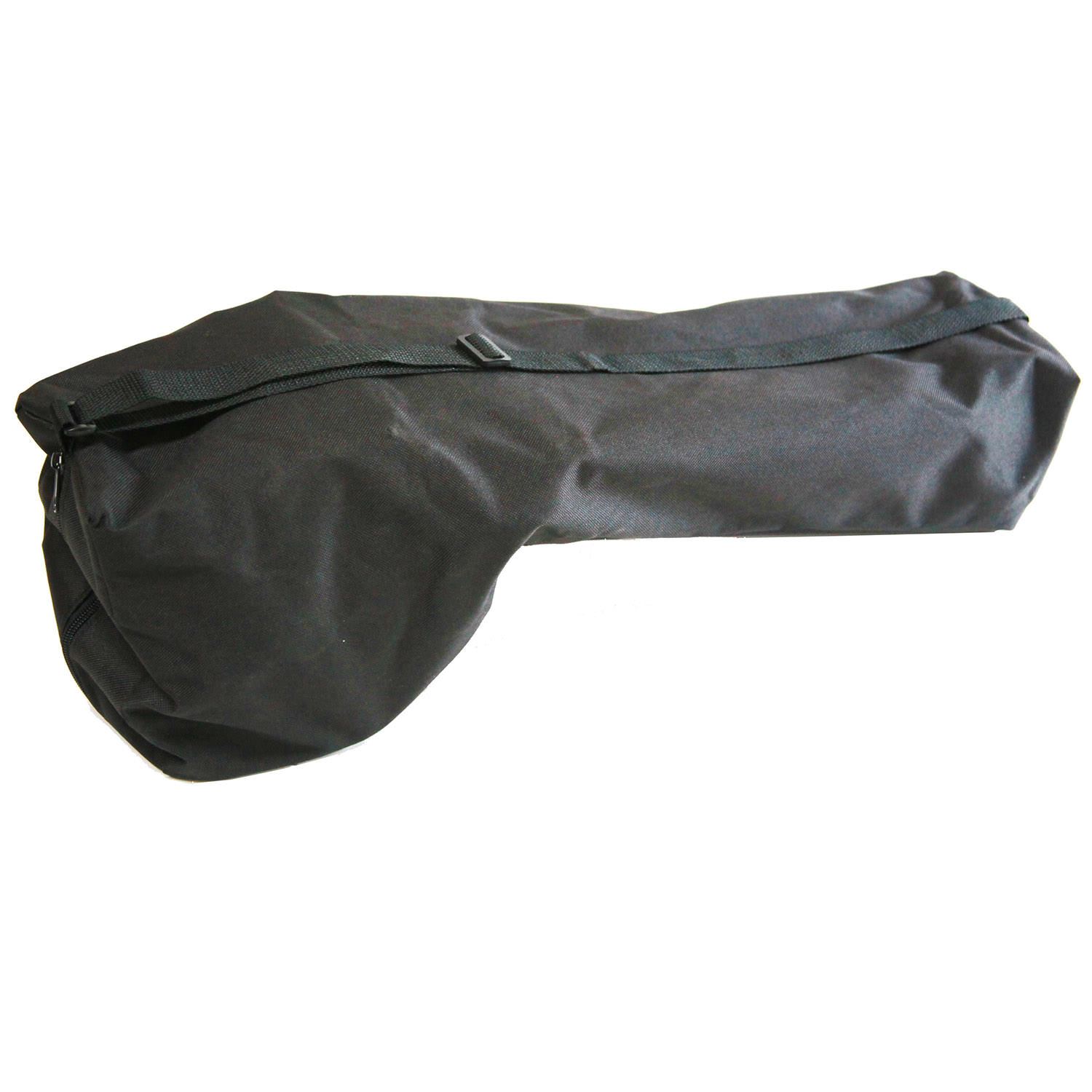

• Includes: Carrying bag
• Folds flat for transport

Mounting Dimensions

Using the Sliding Clamp:

Min length from center: 6.125 in / 155mm (12.25 in Diameter)
Max length from center: 16.5 in / 420mm (33 in Diameter)

For Tripods with Spreader

 Length from center: 18 in / 457mm (36 in Diameter)
