SALE 7 Inch Iris Pro WIRELESS HDMI On Camera LCD Monitor

  • Sale
  • $500.00
  • Regular price $759.00

The ProAm USA Iris Pro Wireless HD LCD Monitor features WHDI (Wireless Home Digital Interface), so you get the fastest, no-cable connection to your camera! Transmit 1080i/p signals up to 100 feet away (30m). With a resolution of 1024 x 600 and a contrast ratio of 800:1, you'll get bright, high quality images.

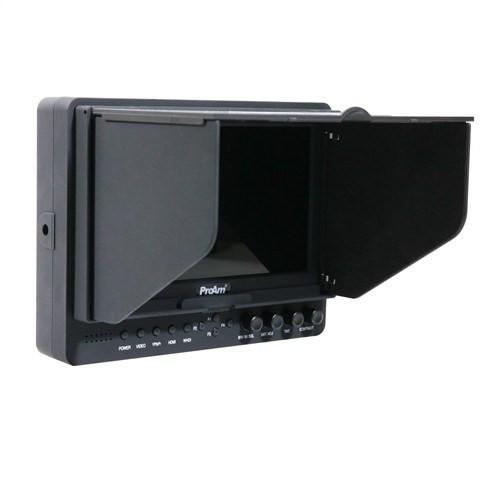

The Iris Pro Wireless HD LCD Monitor has WHDI, YPbPr and HDMI input as well as HDMI output so you can connect multiple monitors together when needed. A flexible folding sunshade is also included!



  • Aspect Ratio, Underscan, Zoom, Peaking, Check Field, H/V Delay, Camera,
  • False Color, Freeze Input, Color Bar, Pixel-to-Pixel, Exposure, Center Marker,
  • Screen Marker, PIP, Histogram, Contrast, Brightness, Saturation, Tint, Volume,
  • Sharpness, Color Temp, Language, Input Format OSD, LOGO, Image Flip,
  • Assistant Function, Manufacturer Default.ConnectionsWHDI Input

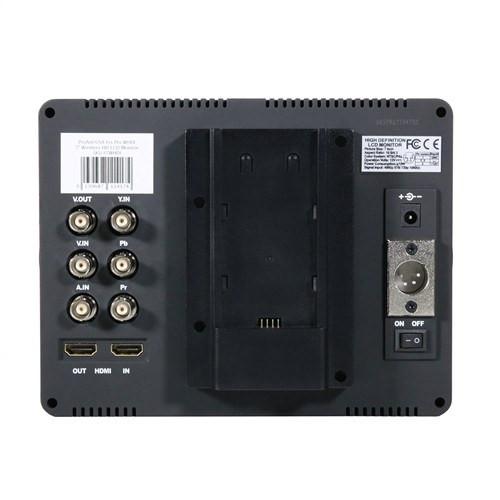

  • HDMI Input, HDMI Output, RGB Component Input, Composite BNC Video Input, Composite RCA Audio
, XLR/DC 12V Input


Features and Specifications

  • Panel Size: 7" LED backlit
  • Displays: 480p, 486i, 576i, 720p, 1035i, 1080i/p
  • Physical Resolution: 1024x600, Supports up to 1920x1080
  • Aspect Ratio: 16:9/4:3
  • Brightness: 250cd/㎡
  • Contrast: 800:1
  • Viewing Angle: 160°/ 150°(H/V) (IPS)
  • Input Signal: WHDI, HDMI, YPbPr (BNC), Composite AV (BNC)
  • Output Signal: HDMI, Composite AV (BNC)
  • Audio: Built In Speaker 1W, Headphones Input (3.5mm)
  • Input Voltage: DC 12V (XLR DC Connector Input)
  • Battery Plate: V-mount, Anton Bauer mount, Sony F-970, Canon LP-E6
  • Power Consumption: ≤12W
  • Operating Temperature: -20℃ ~ 60℃
  • Storage Temperature: -30℃ ~ 70℃
  • Menu Language: English, Chinese
  • Dimension(LWD): 194.5×150×38.5mm / 48.5mm (with cover closed) / 158.5mm (with cover open)
  • Weight: 560g / 720g (with cover)
  • Warranty: 1 Year Warranty

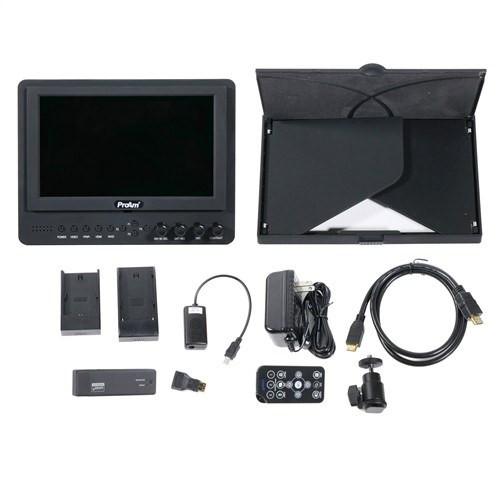

Items Included

  • 7" HD LCD Monitor
  • Accessory Shoe Mounting Adapter
  • HDMI Cable
  • WHDI Accessories
  • Battery Adapter Plate for F-970 and LP-E6 (battery not included)
  • Anton Bauer/V Mount Adapter PanelAC Adapter
  • Hard Sunshade Cover
